Small mono solar panel 20W
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | Linksun |
| گواهی: | CE |
| شماره مدل: | LS-20M |
| سند: | بروشور محصول PDF |
پرداخت:
| مقدار حداقل تعداد سفارش: | 100 قطعه |
|---|---|
| جزئیات بسته بندی: | 2 عدد / کارتن |
| زمان تحویل: | 5-8 روز |
| شرایط پرداخت: | ۳۰% TT پیش پرداخت، ۷۰% تعادل قبل از تحویل. |
| قابلیت ارائه: | 1000 عدد در هفته |
|
اطلاعات تکمیلی |
|||
| نام محصول: | پانل های خورشیدی کوچک قابل حمل | سلول خورشیدی: | سلول های سیلیکونی تک کریستالی |
|---|---|---|---|
| کاربرد: | RV، قایق و قایق بادبانی، ون و ماشین، کمپینگ در فضای باز | بعد قرارداد: | 340x470x25mm |
| فواید: | قابل حمل، راحت، سبک، کارآمد | برگه پشت: | سفید |
| ضمانت: | 5 سال | طبقه حفاظت: | IP 65 |
| مواد جلویی: | شیشه ای معتدل | کابل های خروجی: | 4 میلی متر مربع |
| برجسته کردن: | small 20W solar panel,portable mono solar panel,compact solar panel with warranty,portable mono solar panel,compact solar panel with warranty |
||
توضیحات محصول

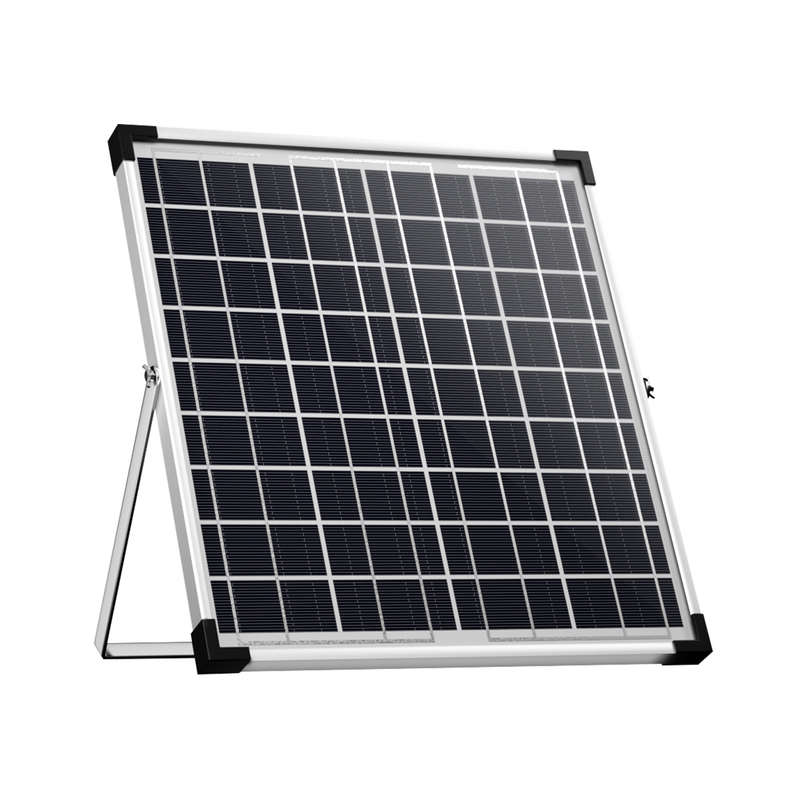

Small mono solar panel 20W
The 20W monocrystalline solar panel offers high efficiency and stable performance, making it a reliable power source for off-grid applications. Built with premium mono solar cells, it delivers excellent energy conversion even in low-light environments. Its compact size and lightweight design make it easy to install and transport, ideal for use in RVs, boats, cabins, security systems, and outdoor lighting. The panel features a durable aluminum frame and tempered glass for enhanced weather resistance and long service life. With good quality and reliable output, it’s perfect for both residential and commercial small-scale solar projects.
Product Features:
1)Portability
Small dimensions make it easy to carry.Its small dimensions can occupy less of your activity area.When you are camping,picnicking,or fishing outdoors,this portable solar panel can help maintain your power needs.By the way,its lightweight feature can help you carry it better.
2)Long service life
The service life of monocrystalline silicon solar cells is relatively long, generally reaching around 20 years, with the highest reaching 25 years.
3)Easy installation
Pre-drilled holes on the back of the panel for fast mounting and securing.
4)Angle adjustable
This product can be equipped with a adjustable mounting bracket,which can rotate 360 degree angle.You can change the angle of solar panels and sunlight to maximize the efficiency.
Product Details:
| Model | LS-20M |
| Maximum Power(Pmax) | 20W |
| Maximum Power Voltage(Vmp) | 17.5V |
| Maximum Power Current(Imp) | 1.15A |
| Open Circuit Voltage(Voc) | 21.42V |
| Short Circuit Current(Isc) | 1.23A |
| Power Tolerance(Positive) | ± 3% |
| Cell Type | Mono-crystalline silicon |
| Contract Dimensions(mm) | 340x470x25mm |
| Weight(KGS) | 2kg |
| Protection Class | IP65 |
| Maximum System Voltage | 600V |
| Temperature Range | -40℃~85℃ |
| Standard Test Conditions | 1000W/m2, AM1.5, 25°C |
FAQ:
Q1:What's the solar panels warranty?
A: 5 year's warranty.If you have any questions about our quality during use,you can contact us at any time.
Q2:Do you accept OEM/ODM orders?
A:We accept OEM/ODM orders.Welcome your inquiry.
Q3:Can I have samples to test?and what's the lead time for the sample order?
A:Yes,of course.The lead time for samples is 7-10 days.
Q4:Are you manufacturer or a trading company?
A:We are manufacturer and our factory is based in Yuyao,Ningbo.Welcome your visit if you like.
Q5:Where are your goods exported?
A:We can export to all over the world.
